Field of application

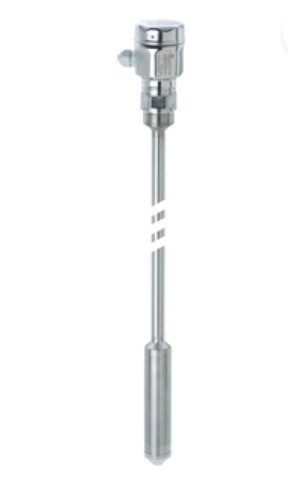

The Deltapilot FMB51 is a rod version with a fixed process connection. This device with the Contite measuring cell and is typically used in the environmental industry. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.

For level measurement.

• Process connections: Threads and flanges

• Temperature: -10 to +85°C (14°F…185° F)

• Measuring range: 0.1 to 10bar / 100m H₂O (1.5 to 150psi / 300ft H₂O)

• Accuracy: ±0.2%, ±0.1% (option)

• International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval

Benefits

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

• Modular concept for easy replacement of display or electronics

• Seamless and independent system integration (HART/PA/FF)

• Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

• International usage thanks to a wide range of approvals
